1000kg 3 axis hydraulic positioner

Short Description:

Load capacity :    1000 kg maximum

Table diameter :   1200 mm

Tilting speed:        0.3 rpm

Tilting power:        1.1 kw

Tilting angle:         0~120°

Rotation speed:    0.05-0.5 rpm

Rotation power:    0.75 kw

Control way:          Remote hand control + Foot pedal Input

Voltage:                 110V ~ 575V  3 Phase 50/60Hz

  • Certificates: CE
  • Delivery time: At stock
  • FOB Price: 7,***.00 USD
  • Product Detail

    Control System & Package

    Our Projects

    Product Tags

    3 Axis Hydraulic welding positioner type is mainly composed of worktable rotation and tilting unit. By means of worktable tilt and rotate, work-piece fixed on the worktable can be placed to ideal position for welding and assembly.

    Here Below is 1T 3 Axis Hydraulic Positioner Specification:

    Model YHB-10
    Load capacity 1000kg maximum
    Table diameter 1200mm
    Tilting angle 0-120°
    Tilting speed 0.3 rpm
    Tilting power 1.1 kw
    Rotation speed 0.05-0.5 rpm
    Rotation power 0.75 kw
    Control way Remote hand control + Foot pedal
    Input Voltage 110V ~ 575V Single/3 Phase 50/60Hz
    Certificate CE approval

    Hydraulic lift welding positioner Brief Description:

    1. The positioner can elevate, tilt, rotate and lift.

    2. The electric control system consists of the electric control box and remote control pendent,foot pedal is also available.

    3. Hydraulic elevating (pressure >20 MPa) make the working height in perfect position.

    4. It can overturn the work piece 360°, tilt in 0~120°.

    5. Voltage is 220V,380V,415V,600V, 50 / 60Hz , 3Ph. Or as your required.

    6. Top-class electronic components from Schneider. and braking device can ensure column work in safe environment.

    3 Axis Hydraulic Lift Pipe Welding Positioner Spare Parts Brand:

    1. Automatic Welding positioner Inverter is from Danfoss / Yaskawa.

    2. Hydraulic pipe positioner Electric system is from Schneider.

    3. Hydraulic welding rotary positioner Motor is brand  Invertek.

    4.CE certificates to European market and America market.Welding rotator spare parts

    Hydraulic Positioner Advantages In Welding :

    1. It’s easy to control with electric cabinet and hand control panel.

    2. Slewing bearing will ensure turning and over turning smoothly.

    3. Several concentric grooves are processed onto the surface of the worktable to help position the work piece at the center.

    After Sale Service From Wuxi Success Machinery Equipment CO.,LTD:

    1. All our welding machine have passed CE test and get the CE certificates.

    2. For Middest East customers,like Sandi Arabia. We also can supply you the CO and Original Invoice.

    3. Fully installed and debugging  before package and delivery, so its easy for your to installation at your work shop.

    4. Door to door installation service is also available if customer needed.

    5. We provide 12month guaranty period for the whole machine quality.

    6. We have enough spare parts for after-selling.

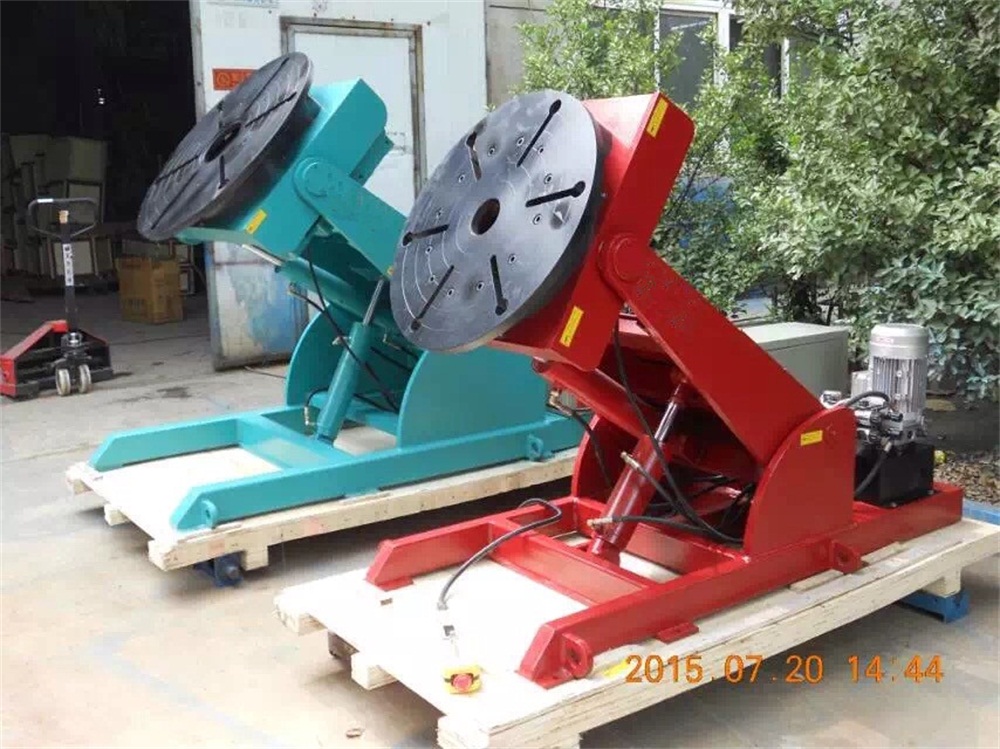

    Deatail Picture:


  • Previous:
  • Next:

  • Control system:
    1. Our hydraulic lift welding positioner  are all with standard remote hand control box and foot pedal control.
    2. Wireless / radio hand control for lift pipe positioner are available,but normally for heavy duty and long pipe / tanks.welding positioner control


    1. If order one / two sets welding positioner ,then we will package with wooden case for LCL shipping.

    2. If the order quantity enough for one whole containers,we will package into containers directly. new3

    1. We have exported our 3 axis hydraulic welding positioners to more than 30 countries in the world. European & America stock is available.

    2. Here below some welding pisitoner working pictures are all from our clients feedback from their work site.

    Italy 10T Welding Table With Positioner.10T welding positioner Saudi Arabia 15T Welding Positioner welding positioner 15T Welding Positioner Work With Chuck welding positioners
